BITMAIN /
Bitmain S19 95 Тх
- Pressure drop of 6 waterblocks
with manifolds at 14l/min 0.27 atm
- dT chip max – water output, at 3.4 kW per miner 25 C
- dT chip max – water output, at 5 kW per miner 29 C
- Chip max at T output water 45 C at 3.4 kW per miner 70 C
- Chip max at T output water 45 C at 5 kW per miner 74 C
Kit includes: 6 waterblocks, 2 manifolds, 12 silicone tubes, clamps.
Waterblocks are installed with thermal paste instead of regular radiators on regular screws

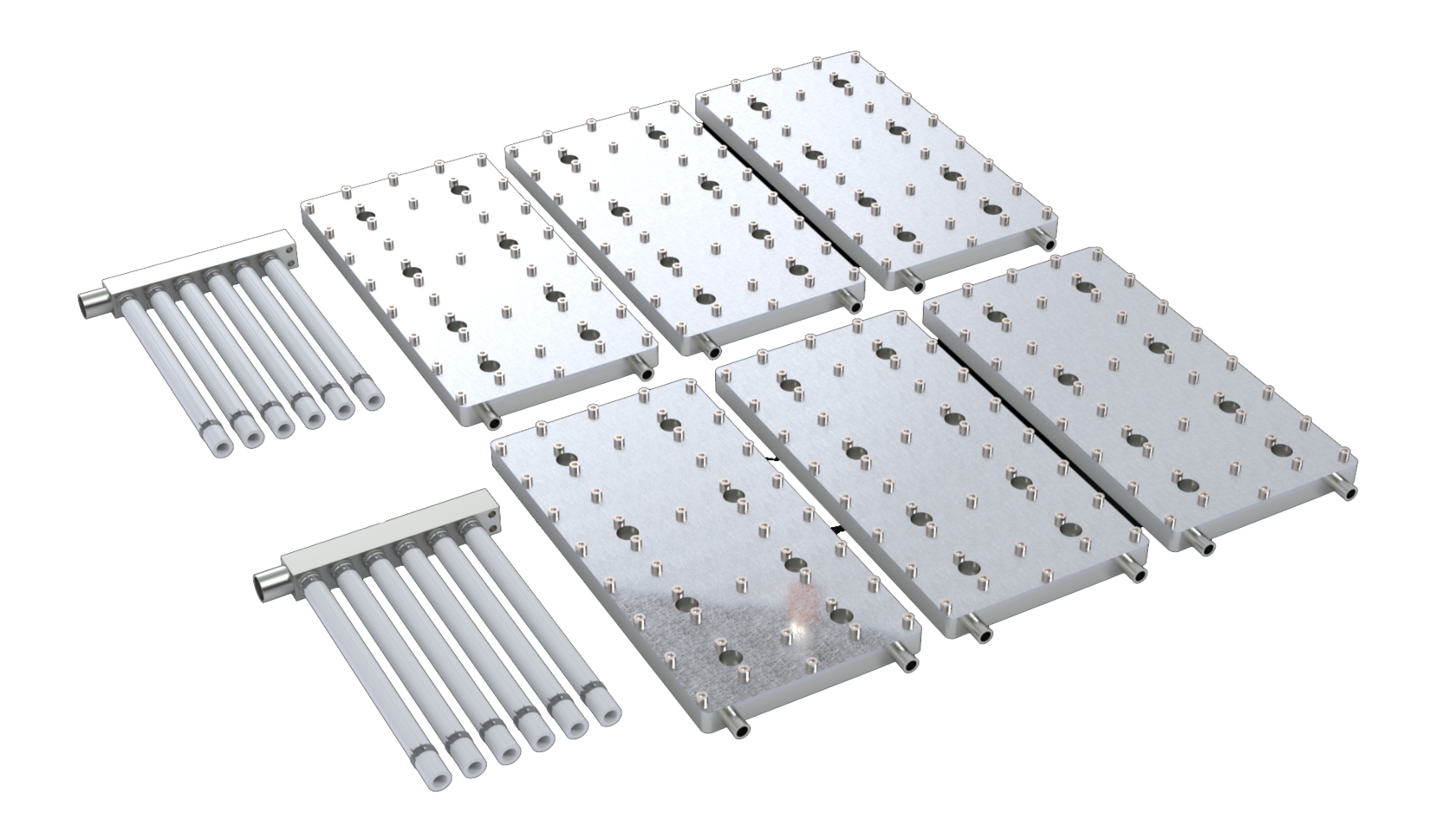

Bitmain s19
Bitmain S19 j pro
- Pressure drop of 6 waterblocks
with manifolds at 14l/min 0.4 atm
- dT chip max – water output, at 3.4 kW per miner 22 C
- dT chip max – water output, at 5 kW per miner 27 C
- Chip max at T output water 45 C at 3.4 kW per miner 67 C
- Chip max at T output water 45 C at 5 kW per miner 72 C
Kit includes: 6 waterblocks, 2 manifolds, 12 silicone tubes, clamps.
Waterblocks are installed with thermal paste instead of regular radiators on regular screws

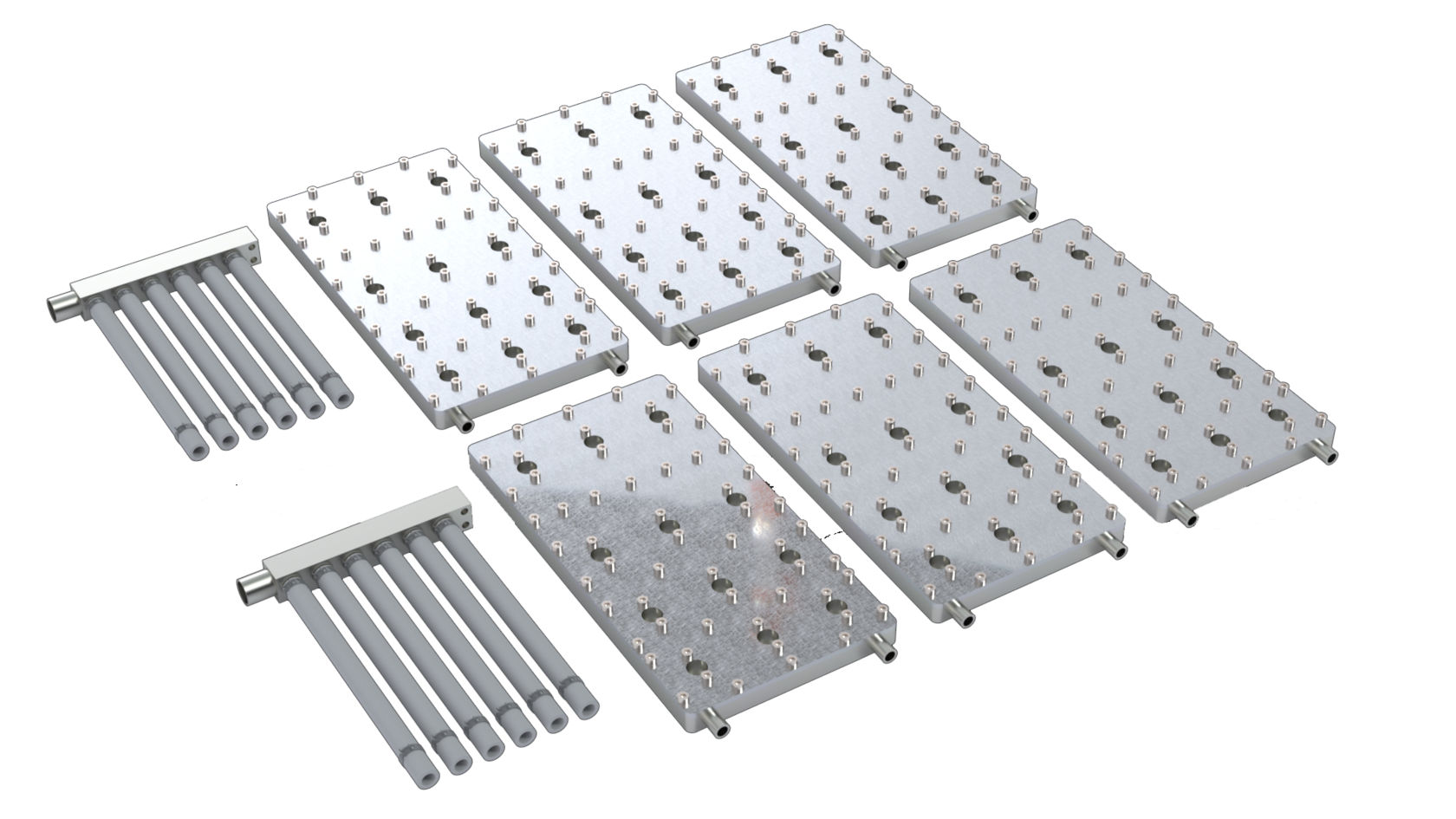

Bitmain s19 j pro
Bitmain S19 pro
- Pressure drop of 6 waterblocks
with manifolds at 14l/min 0.35 atm
- dT chip max – water output, at 3.4 kW per miner 22 C
- dT chip max – water output, at 5 kW per miner 27 C
- Chip max at T output water 45 C at 3.4 kW per miner 67 C
- Chip max at T output water 45 C at 5 kW per miner 72 C
Kit includes: 6 waterblocks, 2 manifolds, 12 silicone tubes, clamps.
Waterblocks are installed with thermal paste instead of regular radiators on regular screws

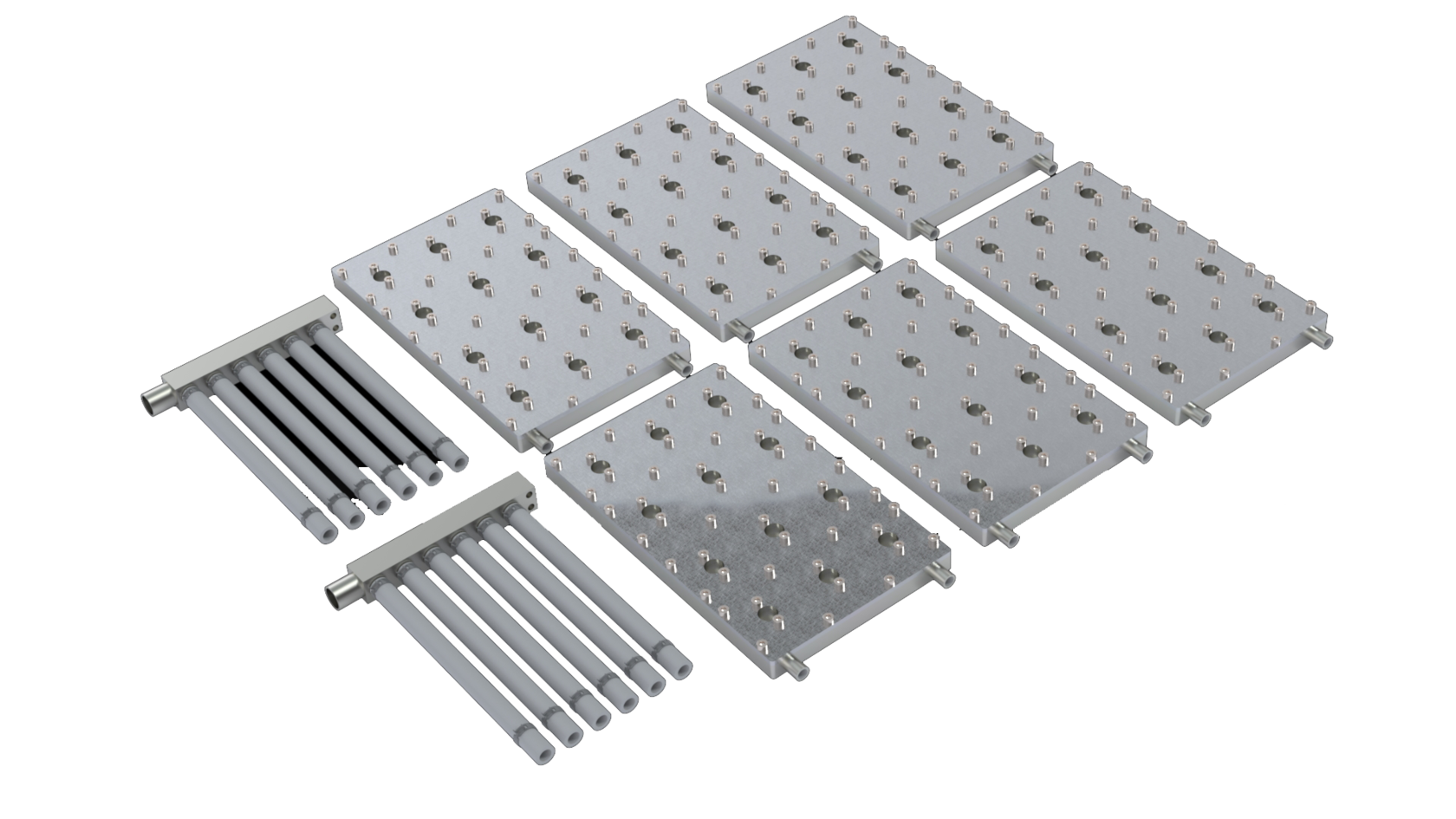

Bitmain s19 pro

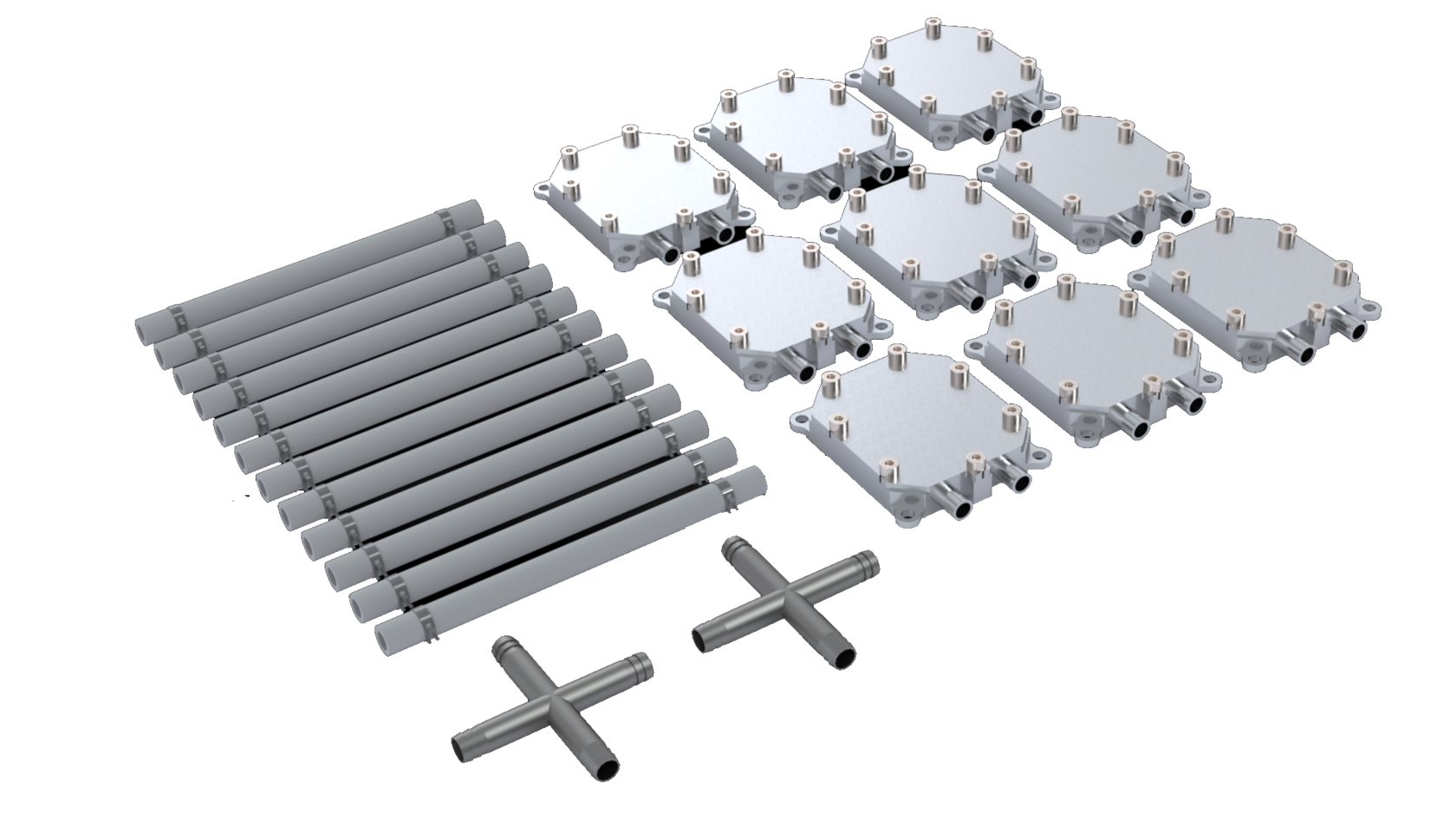

Bitmain z11/z15
